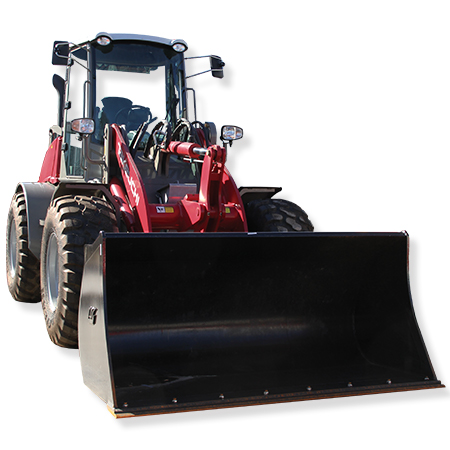

TW95 Machine Cutout
Performance

Travel speed may be controlled using the 100% inching pedal which allows the machine to be brought to a crawl/stop reducing wear on the brakes.

Durability

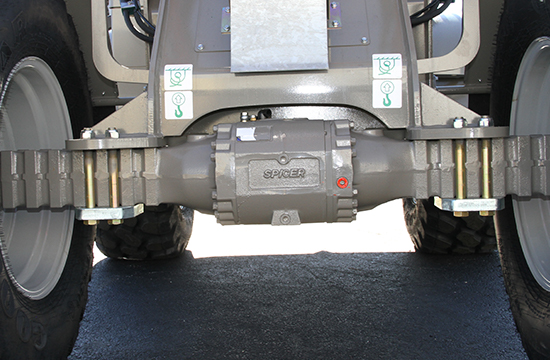

Rigid spicer axles on the TW95 provide excellent durability and strength for years of service.

Operator Comfort

The TW95 cab features a deluxe cloth air suspension seat with multiple adjustments, and foldable arm rest, and also comes with A/C and heat for excellent comfort.

Serviceability

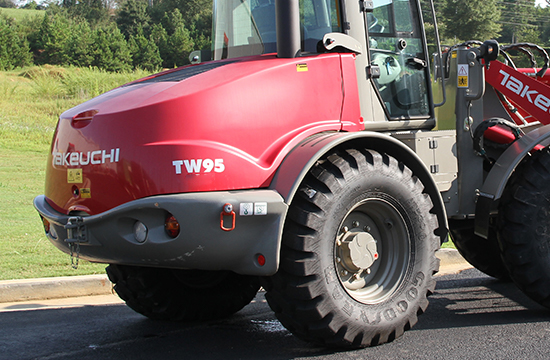

Large anchor points on the rear counterweight and loader frame allow the machine to be easily secured for transport.

Takeuchi Four Pillars

Compare Models
Request Information

TW95

Compact Wheel Loader

Powerful and efficient, the Takeuchi TW95 delivers exceptional performance, comfort, and serviceability.  It is an ideal loader for a wide range of applications including load and carry, snow removal, and feedlots.  The cabin is spacious and features a deluxe high-back air ride seat with heat and armrest, single lever joystick control for all loader functions and directional changes (F-N-R), a proportional thumb wheel for auxiliary hydraulic functions, and rocker switches to control a wide range of machine functions.  A standard hydraulic quick coupler makes changing attachments quick and efficient.

The TW95 is powered by a 114 hp, Deutz TCD 3.6 L4 engine that is Final Tier 4 using an SCR and DOC exhaust after treatment system.  The hydrostatic drive is responsive and delivers excellent power for loading applications, and it also provides dynamic braking, slowing the loader as the operator backs off the throttle.  High-speed road gear is standard equipment and enables the loader to travel at speeds up to 24.8 mph for greater mobility and versatility.  100% locking differentials can be engaged at low speeds to provide maximum tractive effort in the most demanding conditions.  Maintenance and inspections are simple to perform on the TW95 due to the wide opening engine hood that provides access to key daily inspection points.

Download Brochure                    Highlight Video                          Machine Specs and Dimensions

Machine Features                        Comparative Specs                   Financing Options

Features and Benefits

  • Loader Lift Arm on TW95
    Z-Bar Loader Linkage
    • Greater bucket breakout and lift arm forces – excels in grading and dirt work applications.
    • Higher hinge-pin heights – ideal for loading dump trucks over the side.
  • Front Axle on TW95
    Center Pin Oscillation
    • 12 degrees of oscillation keeps the operators station stable while the working equipment oscillates.
  • Right Rear of TW95
    Tight Turning Radius
    • With 40 degrees of articulation these units are highly maneuverable in tight spaces.
    • True center pivot steering allows the rear wheels to follow the same tracks and the front making less impact to the job site.

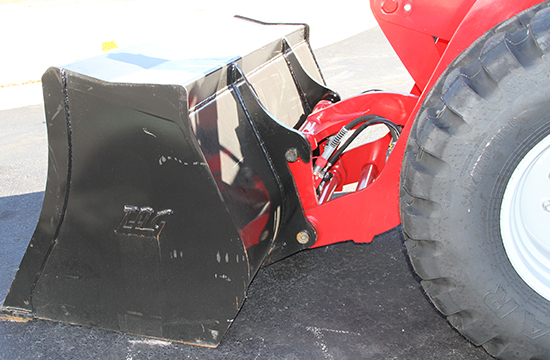

  • Front Loader on TW95
    Drive Train
    • Hydrostatic Drive with 100% Inching pedal keeps engine RPMs high while precisely metering machine speed.
    • 100% Locking Differentials: Front and Rear for added peace of mind when in unstable soil conditions.
    • 2 Speed Travel with optional road gear with speeds up to 24.8 mph
    • Rigid Heavy Duty Spicer Axles with Outboard Planetary Reduction Drives provide exceptional torque and durability.

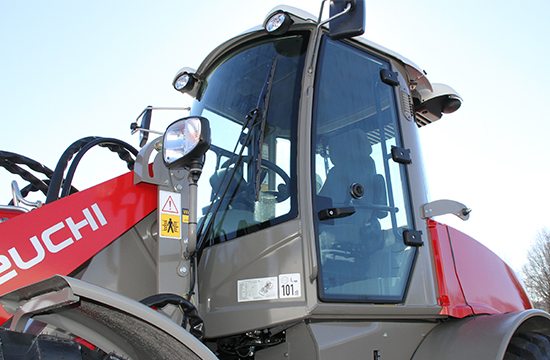

  • Right Side of Cab in TW95
    Deluxe Operator Station
    • Air Conditioning, Heat, Front and Rear Wipers, Front and Rear Washers, and Rear Defrost keep the operator comfortable year round.
    • Elevated Operator’s Station with Panoramic Glass provides 360 degree view of worksite.
    • Deluxe Lighting Package includes Work, Driving and Signal Lights that keep the work area and machine visible in low light conditions.
    • Deluxe Air Ride Suspension Seat with Arm Rests keeps the operator comfortable and properly positioned over the controls.

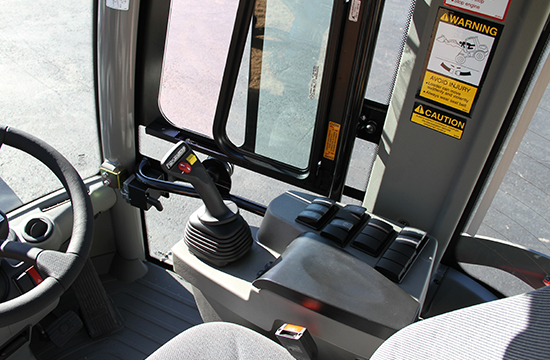

    • Multi-Functional Joystick for Machine Direction, Bucket Control, Loader Arms, Diff Lock, High Speed, and Auxiliary Controls are low effort and precise.

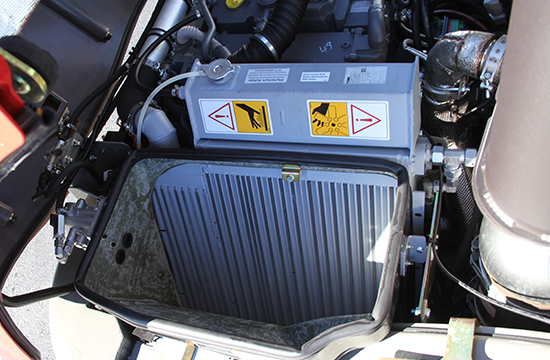

  • Cooling Module in TW95
    Auxiliary Hydraulic System
    • Standard 26.4 GPM system allows for maximum attachment versatility.
    • Over-sized Hydraulic reservoir – optimal hydraulic system cooling

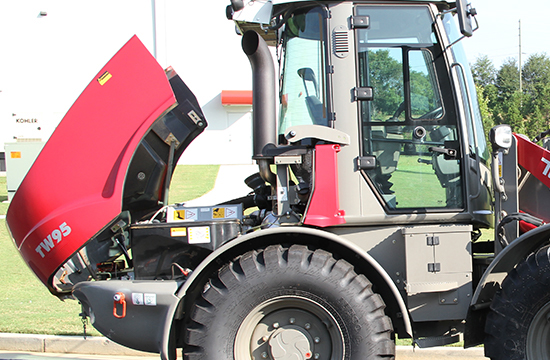

  • Rear Engine Cover Opened on TW95
    Ease of Maintenance
    • Outboard Planetary Drives makes service and oil changes easy
    • Ground level serviceability-engine service and daily maintenance check points are easily accessed through the rear hood.
    • Tier 4 Final SCR/DOC exhaust aftertreatment – No DPF filter to maintain or clean.
  • Large Door of TW95
    Added Benefits
    • No Spin turn causes less tire wear and is easier on driveline components.
    • Better Visibility – 360 degree panoramic view from elevated operator stationBetter Visibility.
    • Lighter Footprint – better flotation results in less impact to soil
  • Deutz TD3.6L Turbocharged Engine Cutout
    Best in Class
    • 114 HP DEUTZ Turbo Diesel
    • Bucket Breakout Force of 15,873 lb
    • Tipping Load of 14,307 lb
